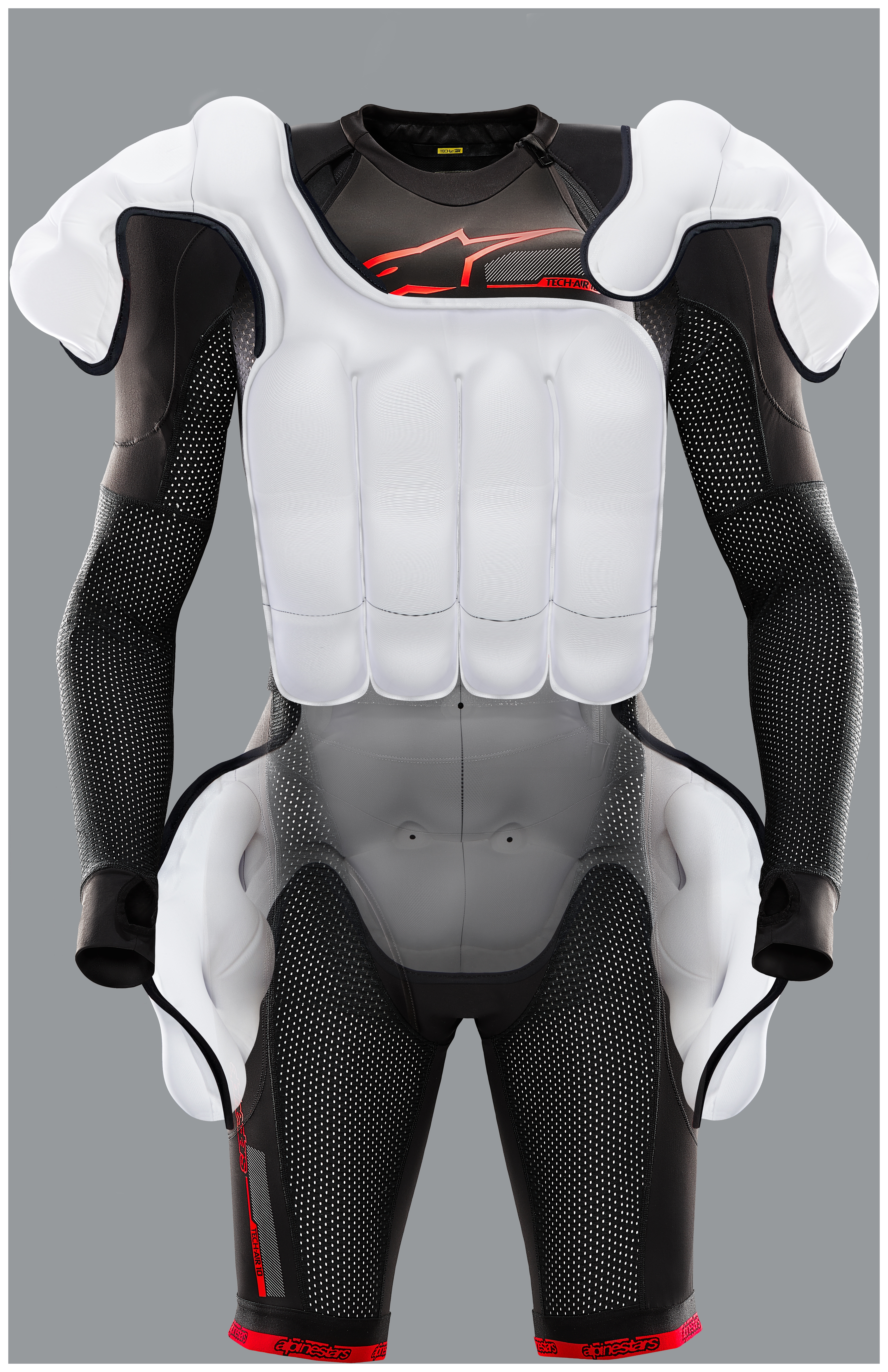

Alpinestars Tech-Air 10 Race Airbag System

Electronics System:

• Active electronic system that features 12 triaxial integrated sensors (3 gyroscopes and 1 accelerometers per side)
• Crash algorithm that leverages AI to accurately monitor when to deploy the airbag in the event of a crash
• 24 hours of riding time after a full charge via micro USB charger
• Bluetooth and App integration
• Capable of both Race and Street use

Washing Care:

• Tech-Air 10 base layer can be removed from the back protector/airbag bladder/ACU and washed separately by machine
• Hang dry only

Airbag System:

• Covers shoulders, chest, ribs, full back and hips
• Maximum inflation time of 40ms based on the volume of the airbag size
• Decreases impact force by 93% compared to a passive protector
• Includes argon gas canisters
• Highly ventilated back protector

Note: Read the entire user manual prior to operation.

Comprehensive Coverage

The Tech-Air 10 System is a slim, self-contained wearable airbag suit that provides upper and lower body protection. It is designed to be worn under any Alpinestars Tech-Air Ready or Tech-Air Compatible leather suit, or any third-party leather suit with 4 cm of space around the circumference of the rider’s chest and 2 cm of room around the circumference of the rider’s hips. The additional space for the chest and hips is necessary to accommodate the inflation of the airbag.

Next Generation Technology

The Tech-Air 10 System features 12 integrated sensors (3 accelerometers plus 1 gyroscope) to continuously monitor the rider’s position. This is combined with an algorithm developed closely using MotoGP race data and data from over 2,000 lab-simulated crash scenarios. The result is a state-of-the-art combination that allows the Tech-Air 10 to determine precisely when and how the airbag should be deployed.

The airbag has a maximum inflation time of up to 40ms (or less, depending on vest size). Inflation time is quick enough to fully deploy the airbag before impact. The Tech-Air 10 provides up to a 95% decrease in impact force compared to passive protectors.

Bluetooth Ready

The airbag boasts a battery capable of 24 hours of riding time on a single charge. A belt mounted LED system allows you to monitor the operational status at a glance.  Alpinestars includes a micro USB charger for quick recharging.

The suit utilizes Bluetooth to connect directly with the Tech-Air App. This uses the rider’s phone to display the system’s operational status, remaining battery life and provide a detailed analysis of your session. Over-the-air firmware updates are also handled through the app.
